TECHNICAL SPECIFICATIONS

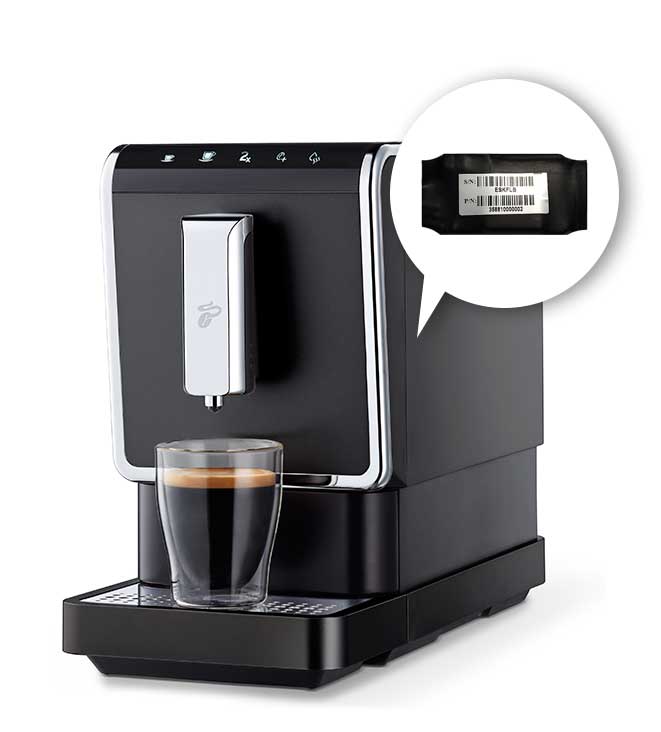

OCS-Vend is a small electronic device, robust and easy to install on any type of small coffee machine.

ocs
  • Size: 75 mm x 40 mm x 20 mm
  • Supply voltage: 230 Vac
  • Power consumption: 20 mA/li>
  • Inputs: 2 optocouplers max 30 Vdc
  • Output 1 relay - NC, NO, COM; max 30 Vdc / 1A

The OCS-Vend device is equipped with:

  • Power source:
    • Size: 60 mm x 30 mm x 20 mm
  • Water pump counter adapter
    • Size: 80 mm x 15 mm x 10 mm
    • Voltage: 240 Valve
  • Blocking relay
    • Size: 50 mm x 30 mm x 30 mm
    • Switched voltage: max 240 Vac
    • Switched intensity: max 10 A
  • Power consumables
    • Size: 350 mm
